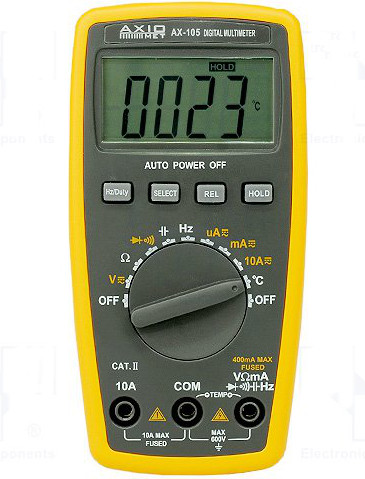

Digital Multimeter AX-105

Features Auto and manual ranging measurement of Vdc, Vac, Iac, Idc, Resistance, Capacitance, Frequency, Temperature. Includes a diode test, audible continuity, auto power off and low battery indication. Complete with test probes and type-K thermocouple. Requires 2xAAA batteries.



Display LCD 3,75 digit (3999)
Sampling 3x/s
DC voltage measuring range 100µ...400m/4/40/400/600V
DC voltage measuring accuracy ±(0,5% + 4 digits)
AC voltage measuring range 1m...4/40/400/600V
AC voltage measuring accuracy ±(0.8% + 6 digits)
DC current measuring range 0,1µ...400µ/4000µ/40m/400m/10A
DC current measuring accuracy ±(1% + 10 digits)
AC current measuring range 0,1µ...400µ/4m/40m/400m/10A
AC current measuring accuracy ±(1,5% + 10 digits)
Resistance measuring range 0,1...400/4k/40k/400k/4M/40MΩ
Resistance measuring accuracy ±(0,8% + 4 digits)
Capacitance measuring range 1p...4n/40n/400n/4µ/40µ/100µF
Capacitance measuring accuracy ±(3,5% + 8 digits)
Frequency measuring range 0,001...1/10/100/1k/10k/100k/1M/30MHz
Frequency measuring accuracy ±(0.5% + 10 digits)
Temperature measuring range -20...1000°C
Temperature measurement accuracy ±(1% + 5 digits)
Temperature measurement resolution 1°C
Diode test 0,5mA, 1,5V
Continuity test acoustic signal for R<50Ω
Overall dimensions (W x D x H) 74 x 36 x 145mm
Weight with battery 190g
Power supply 2 batteries 1,5V LR03 (AAA) NOT included.
