DPDT Miniature ON-ON PCB Mount Rt-Angle

  • Model: SW206

 Ask a Question

£0.98

Add to Cart:
2-Position ON-ON 3A/250Vac 6A/125Vac - PCB pins 1.3mm wide.
Toggle length 7mm operating perpendicular to the PCB.
Body dimensions - 11.8mm wide, 13mm height, 9.1mm deep.
Barrel unthreaded, 7mm x 6mm(diameter).

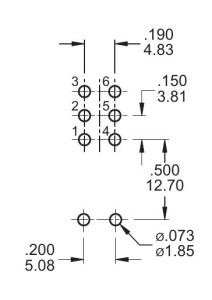

PCB layout:
pcb layout
